SP328/SP328P High-speed Programmer

Update: 2019/8/23 14:37:52??????View:

Brand: SFLY
Type: SP328
Downloads：
SP32 Programmer software Support chip list

Introduction

SP328/SP328P is the latest high-speed mass production programmer of SPI FLASH, which fully supports the high-speed mass production of SPI NOR/NAND FLASH and I2C/MicroWire EEPROMs from domestic and foreign manufacturers. High-speed MCU+FPGA architecture, built-in hardware driver engine and IO dynamic allocation technology, support QUAD (four-channel) mode of SPI FLASH, USB2.0 high-speed (480Mbps) communication interface, use internal memory instead of conventional external SD/CF card Save burning engineering files..., multiple innovations and leading technologies ensure efficient mass production and stability. The actual measurement of a GD5F1GQ4UB (1Gb SPI NAND) requires only 103s (erasing + programming + verification), which is significantly ahead of similar products. The programmer is equipped with the first generation of the programmer control interface (ATE), which supports the automatic programming machine of various manufacturers. Offline programming project files can be downloaded from the computer or loaded from the USB flash drive.

Features

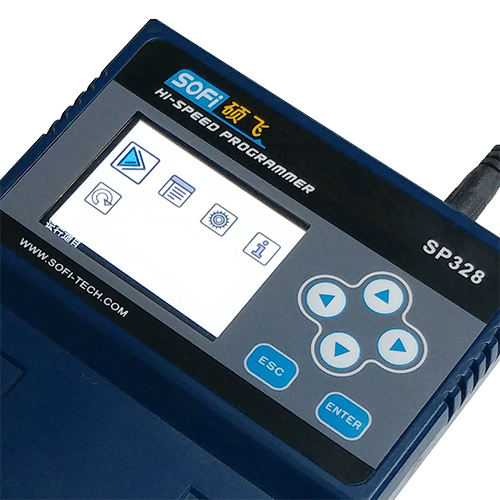

Equipped with LCD display and operating keyboard
2.4-inch wide-field TFT color LCD screen with “cross” navigation keyboard for clear and intuitive display and convenient operation

Support Offline Programming
Save offline engineering data from the built-in memory chip without connecting to a computer

Multiple CRC data verification to ensure that the programmed data is absolutely accurate;
Offline storage memory: 2Gb (256MB) (Note: Offline memory is used for system information storage, about 250MB for users to burn data storage)
Compared with the conventional SD/CF card to save offline data, the built-in memory chip has the advantages of faster transmission speed and higher stability.
Some traditional master copy machines, the data is read from the master chip. Because the correctness of the source data cannot be checked, it is easy to cause damage to the master data, or the contact of the master chip on the socket during the reading process is poor or interfered. The data source is incorrect. As a result, all the chips that were programmed are not working properly.

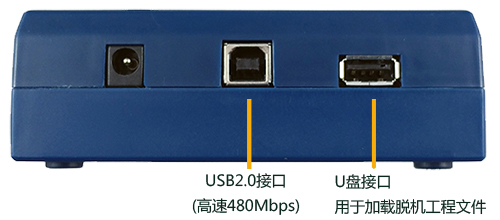

The first U disk interface support, the engineering data for offline burning can be loaded from the computer side or loaded through the U disk, which is convenient for field application.

Support chip insertion start / button start / ATE control interface start

Chip insertion start:
The placement and removal of the intelligent detection chip can complete the whole process of chip burning without mouse click and button operation, which greatly improves the efficiency of manual programming.
Button start:
Equipped with a separate start button, each time you press the chip once

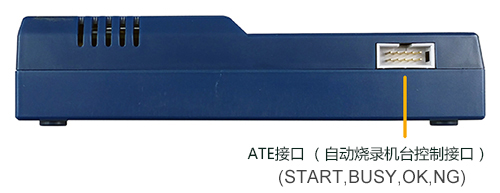

ATE control interface:
Shuofei's first ATE control interface provides accurate and reliable burning machine control signals (BUSY, OK, NG, START), and supports a wide range of automatic burning machines/manipulators from various manufacturers.

Use a dedicated adapter module interface
Imported connectors and adapters reduce data transmission paths, reduce interference, and improve burn reliability and service life
The software intelligently matches the driving algorithm of the corresponding package according to the adapter module.

FLASH smart erasing technology
Automatically match the best erasure algorithm based on data within the chip:
The chip is completely empty: automatic skip erase operation;
There is data in part of the chip area: only the area with data is erased;
Conventional programmers can only use full-chip erase, which greatly reduces the efficiency of mass production programming.

Supports QUAD, DUAL, and standard SPI modes for SPI FLASH
DUAL: Dual channel mode, using two IOs for data transmission at twice the transmission rate of standard SPI
QUAD: Four-channel mode, using four IOs for data transmission at the same time, the transmission rate is 4 times that of the standard SPI
Most of the programmers currently on the market (including the SP8/SP16 series before the Soaring) can only support the standard SPI mode.

Optional clock frequency setting
SPI FLASH: 8/12/16/20/24MHz
SPI EEPROM: 250/500KHz, 1/2/4/6MHz
I2C: 50/100/200/400KHz

Full-featured programming control software

Support Chinese and English switching, compatible with multiple operating systems
Switch between Chinese and English through the software menu.

Support WinXP, VISTA, Win7/Win8/Win10 (32bit/64bit)

Support software upgrades to add new devices
Continuous free upgrade service to ensure the long-term use value and best performance of the programmer

Support project file management
The project file saves all programming parameters, including: chip model, data file, programming settings, etc. Open existing project to program, without any settings

Support for project file locking and read-only properties
After the technician locks the project file, or is a read-only project file (the file property is read-only or opened in read-only mode), the programmed file cannot be modified, and can be safely handled by the production line worker.

Support automatic serial number function (USB online mode)
Can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.

Support for automatic increment and file mode

Other Functions

Short circuit / over current protection
It can prevent the chip from being reversed and causing the programmer or chip to burn out.

Chip pin contact check function
Before the programming, the pin contact condition is detected, and the contact is good before burning. Otherwise, the graphic is given to indicate which pins have poor contact.

Support UID reading function of some chips

Support SFDP content reading of some SPI FLASH

UID-based data encryption function (SP328P only)

Add anti-copy to the product (chip), anti-piracy function

Support offline automatic serial number function (SP328P only)
Support for automatic increment and file mode

Part of the chip burning time (measured data)

Specifications

Device support: EEPROMOM such as I2C/MicroWire, SPI NOR FLASH, SPI NAND FLASH
Device voltage: 1.7-3.6V
Communication interface: USB2.0 high speed (480Mbps)
Offline mode: Support for offline operations
Power specifications: Input 150-240Vac, 50/60HZ; Output: DC5V/1.5A
Main unit size: 164*113*36 mm; Weight: 260g
Packing size: 185*165*76 mm; package gross weight: 550g

Standard Configuration

Programmer host 1
Power adapter 1
USB cable 1
Warranty Card & Certificate
Note: The chip adapter is an optional accessory, please choose according to the chip package you actually burned.

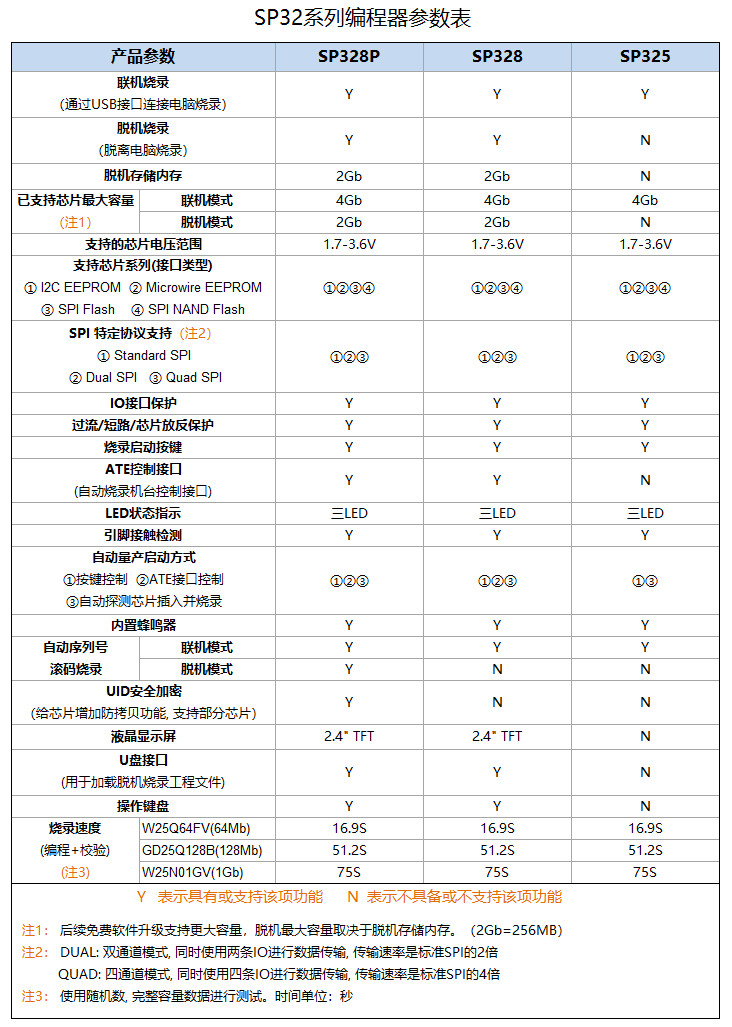

Product function comparison and selection
